Carboline Carboguard 893 SG
Carboline Carboguard 893 SG is a versatile and economical self-priming, epoxy finish that demonstrates very good chemical and corrosion resistance. Carboline glass flake additive may be added to improve performance including internal strength, hardness, impact, and abrasion resistance.
Best Uses
Carboguard 893 SG is used either as a primer, intermediate coat, or self-priming finish over steel and inorganic zinc primers. It may be topcoated with itself, or a broad variety of high performance finish coats. Please note Carboguard 893 SG is not recommended for immersion service.
Application
All surfaces must be clean and dry. Employ adequate methods to remove dirt, dust, oil and all other contaminants that could interfere with adhesion of the coating.
Steel:
For most applications SSPC-SP6 to obtain a blast profile of 1.0-2.0 mils (25-50 microns). May also be applied over SSPC-SP 3 for certain applications. When using under fireproofing products, defer to the primer surface preparation requirements in the product data sheet of the fireproofing product.
Concrete or CMU:
Concrete shall be designed, placed, cured, and prepared per NACE No. 6/SSPC-SP 13, latest edition. Abrade to remove all laitance, loose concrete, etc. and to create surface profile in accordance with ICRI CSP 2-5.
Non-Ferrous Metals:
Surface profile should be a dense angular 1.5 - 3 mils and is best achieved through abrasive blasting in accordance with SSPC-SP16 for atmospheric exposure.
Mixing:
Power mix separately, then combine and power mix. Important: Do not mix partial kits.
Application Method
The recommend application method is by either Conventional or Airless Spray. Brush & roller can also be used, however, multiple coats may be required to obtain the desired appearance, recommended dry film thickness and adequate hiding. Avoid excessive rebrushing or re-rolling. For best results, tie-in within 10 minutes at 75 °F (24 °C).
Applications
- Bridge & Highway
- Commercial / Architectural
- Fireproofing
- Manufacturing
- Marine
- Oil & Gas (Offshore)
- Pipeline & Terminals
- Power
- Pulp & Paper
Features & Benefits
- Ready to apply after mixing; no sweat-in time or thinning required.
- Economical fit for use epoxy
- Available in a variety of rapid tint colours

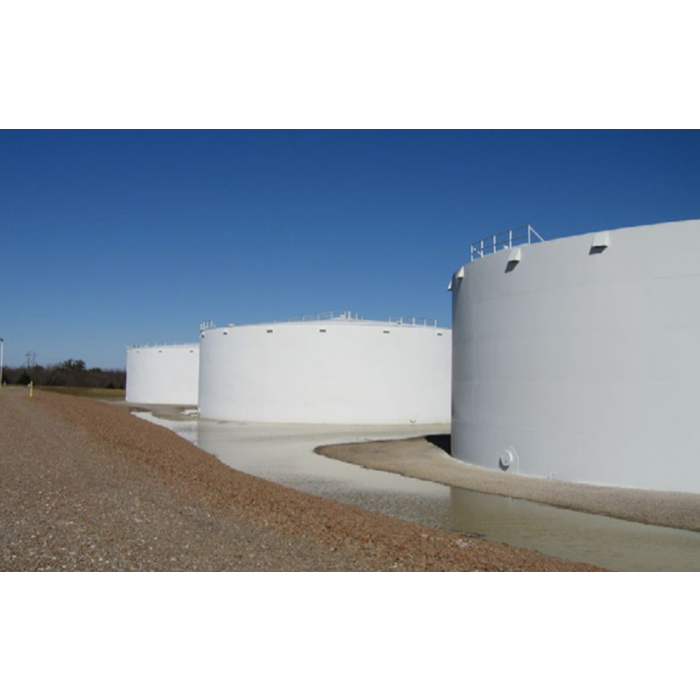

- Attractive low sheen for tank exteriors
- Used as a primer, intermediate, or finish coat
- Power tool cleaned surfaces acceptable
- Optional low temperature (LT) cure Part B
- VOC compliant to current AIM regulations
Technical Info
| Components: | Two Components |
| Type: | Epoxy polyamide with corrosion inhibitor (zinc phosphate) |
| Finish: | Eggshell |
| Stock Colours: | 0700 (Grey) and 0800 (White) |
| Tintable: | Yes. Please note, bespoke tints are non refundable / exchangeable |
| VOC Content: | 324 g/l |
| Volume Solids: | 63% +/- 2% |
| Suitable Substrates: | Steel, Concrete or CMU, Non-ferrous metals |
| Application Method: |
Airless Spray or Conventional Spray, Brush (Use a medium bristle brush) or Roller (Use 3/8” nap solvent resistant core roller). |
| Theoretical Coverage: | 1011 ft²/gal at 1.0 mils (24.8 m²/l at 25 microns) 337 ft²/gal at 3.0 mils (8.3 m²/l at 75 microns) 168 ft²/gal at 6.0 mils (4.1 m²/l at 150 microns) Allow for loss in mixing and application. |
| Wet Film Thickness (WFT): | - |
| Dry Film Thickness (DFT): | 3 - 6 mils (76 - 152 microns) per coat 3-5 mils (75-125 microns) can be used as a primer or intermediate coat. Two coats may be used direct-to-metal. 4-6 mils (100-150 microns) can be used as a finish coat over a primer. Do not exceed 10 mils (250 microns) in a single coat. Excessive film thickness over inorganic zincs may increase damage during shipping or erection. |
| Induction Time: | - |
| Pot Life: | 4 hours at 24°C |
| Touch Dry: | 1 hour at 24°C |
| Dry to Handle: | 4 hours at 24°C |
| Overcoatable: | 7 hours at 24°C |
| Minimum re-coat time: | 1 Year |
| Cleaner / Thinner: | See product data sheet for thinners dependant on application method. Clean up tools with Thinner no. 2 |
| Shelf Life: | Min 36 months from date of production unopened |
| Packaging: | Available in 5 Litres |
