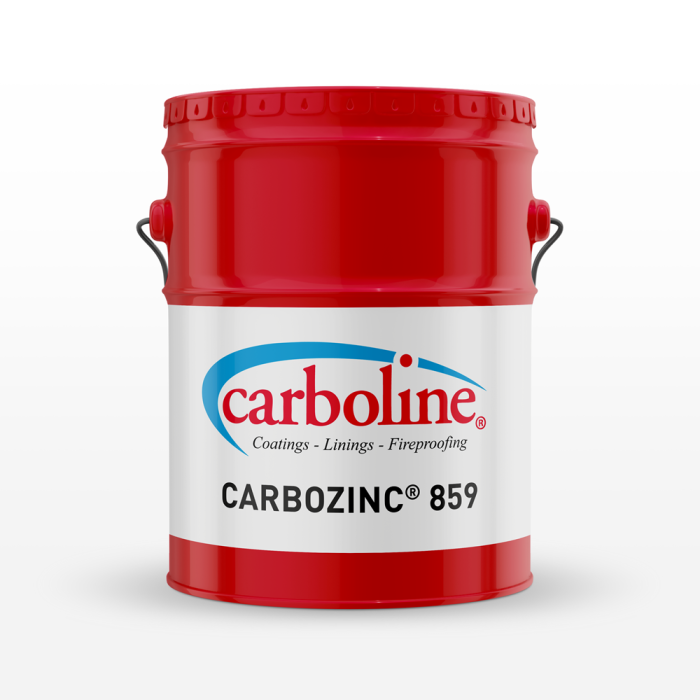

Carboline Carbozinc 859
Carboline Carbozinc 859 is a low VOC organic zinc epoxy steel primer with extremely fast cure-to-topcoat characteristics for inshop applications and quick turnaround requirements in the field. Class B friction rating.
Best Uses
Carbozinc 859 is an outstanding zinc-rich primer that has very desirable application characteristics. It has outstanding corrosion resistance and is used extensively in virtually all industrial markets. It can be topcoated in as little as 30 minutes, cure down to 35°F (2°C), and applies with little or no thinning. The corrosion resistance of this product rivals that of inorganic zinc primers, and with appropriate topcoat, can often outperform a comparable 3-coat sytem.
Application
Always ensure that the surfaces to be coated are fully prepped prior to application. The surfaces must be clean and dry. Employ adequate methods to remove any dirt, dust, oil and all other contaminants that could interfere with adhesion of the coating.
Steel:
SSPC-SP6 withO a 1.0-3.0 mil (25-75 micron) surface profile.
SSPC-SP2 or SP3 with a roughened surface for touch-up.
When using under fireproofing products, defer to the primer surface preparation requirements in the product data sheet of the fireproofing product.
The recommended application method is by Conventional or Airless spray. A brush or roller can be used on small areas only.
Suitable Applications
Carbozinc 859 is used in the following markets:
- Water & Wastewater
- Commercial & Architectural
- Bridge & Highway
- Pulp & Paper
- Metals & Mining
- Commercial Marine
- Oil & Gas
- Power - Thermal Fuel
- Fireproofing
Certificates & Approvals
- Meets Class B slip co-efficient and creep testing criteria for use on faying surfaces
- Approved for MPI #20
Features & Benefits
- Rapid cure. Dry to recoat in 30 minutes at 75°F (24°C) and 50% relative humidity.
- Complies with SSPC Paint 20 (Type II)
- Low temperature cure down to 35°F (2°C)
- Excellent adhesion
- Protects against undercutting corrosion
- Field proven primer that applies well by spray methods
- Excellent touch-up primer by brush or roll for small areas.
- VOC compliant to current AIM regulations
Technical info
| Components: | 3 components |
| Type: | Organic Zinc-Rich Epoxy |
| Finish: | Flat |
| Stock Colours: | Green |
| Tintable: | No |
| VOC Content: | 326 g/l |
| Volume Solids: | 66% +/- 2% |
| Suitable Substrates: | Steel |
| Application Method: | Airless Spray or Conventional Spray. Brush or Roller for small areas and touch up only. |
| Theoretical Coverage: | 1059 ft²/gal at 1.0 mils (26.0 m²/l at 25 microns) 353 ft²/gal at 3.0 mils (8.7 m²/l at 75 microns) 212 ft²/gal at 5.0 mils (5.2 m²/l at 125 microns) Allow for loss in mixing and application. |
| Wet Film Thickness (WFT): | - |
| Dry Film Thickness (DFT): | 3 - 5 mils (76 - 127 microns) per coat Dry film thickness in excess of 10.0 mils (250 microns) per coat is not recommended |
| Induction Time: | - |
| Pot Life: | 4 hours at 24°C |
| Dry To Handle: | 2 hours at 24°C |
| Overcoatable: | 30 minutes at 24°C |
| Fully Cured: | - |
| Cleaner / Thinner: | Use Thinner no. 2 to clean tools |
| Shelf Life: |
Part A: 36 months at 75°F (24°C) From date of production unopened. |
| Packaging: | Available in 11.3 Litre kits. |
