SKYVAC SurveyCam High-Level Inspection System

SKU
id23746
Non Hazardous
For instant, up close, crystal clear images – up to 100M* distance via Bluetooth.
Available in 3 package options with or without poles.
From £805.00 £670.83
In stock
Only %1 left
Product Description

Please note, we can only deliver this product to the card holders address if you order online. If you would like us to deliver to an alternative address, please contact our sales team.

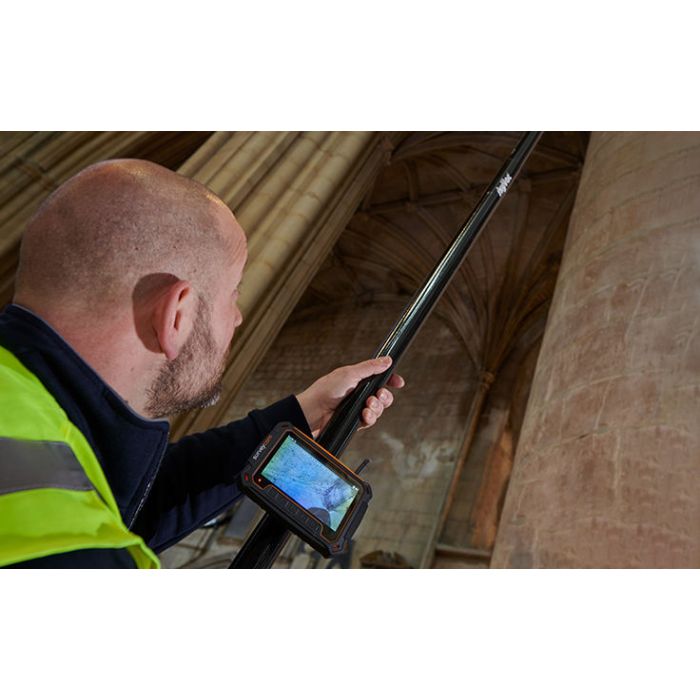

The SurveyCam® system takes high level inspection to a new level. With a 5” HD monitor, secure and reliable signal transmission via Blutooth up to 100M*. Features camera mounted LED lights.

Best Uses

The Blutooth Skyvac SurveyCam® Inspection System is ideal for complex and detailed inspection projects. It gives you access to, and clear information about, high level projects - so you can make informed decisions on what you can see.

Suitable for indoor and outdoor use, the SurveyCam is ideal for any of the following:

Maintenance:

  • External Roof, gutter, chimney and solar panel inspection
  • Internal Loft and attic space inspection

Wildlife: For wildlife conservation or for pest control

  • Unobtrusive way to monitor nesting birds, bees and bats.
  • Monitor pests, such as rats, pigeons, and insects (such as the oak processionary caterpillar), from a distance.

Transport & Highways:

  • Bridges, archways and underpass inspection
  • Aeroplane, bus and train inspection

Commercial Warehousing:

  • Warehousing, high level stock checking and inventory control

Security projects:

  • Military or law enforcement for high level property inspection

Application

Use with the SurveyCam® inspection pole (either 32ft / 50ft) for quick and easy access to high level projects (sold separately). Constructed of high modulus carbon fibre, the telescopic poles are rigid, as well as being compact and lightweight, ideal for easy transport and storage.

Features and Benefits

Getting “quality eyes on” high-level projects can be a difficult, time consuming and expensive project. The SurveyCam® inspection system combined with the SurveyCam® telescopic pole, gets you right to where you need to be – and see.

For instant access, along with the confidence and security of seeing what’s really going on, SurveyCam® is a great asset to your business.

  • Clear Close Ups – Consistent, Quality images to base decisions on.
  • Bluetooth contection.
  • Up to 100M distance – For eyes on, where access is restricted.
  • Instant Easy Access – No ladders, cherry pickers, or drones required.
  • Camera Mounted Lights – Clear visibility in dark locations, ideal for indoors.
  • Capture Images and video – Record and Share results immediately.
  • Secure Encrypted Signal – Constant, reliable and protected image transmission.
  • Easy to Use – Minimal training, no HSE certificates or drone license required.
  • Compact Storage – lightweight, portable and ready in an instance.

*100M Distance based on unobstructed range

Technical Details

SurveyCam® Inspection System, Included as Standard:

5 Inch HD Monitor:

  • Antenna for Monitor
  • 1 x 8GB TF card
  • Sunshade for Monitor
  • Multi-Functional TF Card Reader
  • 1 x wide base black bracket (monitor)
  • Telescopic Hand Grip
  • Blutooth conection

Camera:

  • Camera Bracket
  • Plug Adaptor
  • In Car Adaptor
  • 2 x USB Charging Cables

Protective Camera case:

  • 33cm L x 28cm W x 12cm H
  • Water resistant and lockable
  • Egg crate foam to lid / Cut to shape foam sections in the base.

Specifications

SurveyCam Monitor:

  • Screen Size: 5 Inch TFT LCD
  • Display Resolution: 1280x720
  • Unobstructed Receive Range: 100 Metres
  • Zoom: 3 levels
  • Modulation Mode: GFSK
  • Power Supply: 5V (VDC)
  • Battery (integrated): 2500mAh
  • Charge Time: 3 hours
  • Working Time (full Charge): 3 Hours
  • Memory: T-Flash Card
  • Max.Memory Size: 64GB
  • Picture Format: 1 x JPEG
  • Video Format: 1280 x 720HD - MP4
  • Picture/Video Resolution: 720 Pixels
  • Operation Temperature: ℃/°F -10~+50 Centigrade /+14~+122 Fahrenheit
  • Dimensions: 150L x20D x 100H
  • Weight: 255g
  • Weather Proof Rating: IP64 for light showers

SurveyCam® Camera:

  • Image Sensor: 1/4 Inch JX-H62
  • Effective Pixels: 1280x720
  • View Angle: 45°
  • Transmission Frequency: Encrypted 2400~2483 MHz
  • Modulation Mode:  GFSK
  • Unobstructed Effective Range: 100 Metres
  • White LED light range: 2 Metres
  • Power Supply: 5V DVC
  • Battery (integrated): 1200mAh
  • Charge Time: 2 Hours
  • Working Time (full charge): 2.5 Hours (LED OFF)/ 2(LED ON)hours
  • Operation Temperature: ℃/°F -10~+50℃ /+14~+122°F
  • Dimensions: 60L x 40D x40H mm
  • Weight: 65g
  • Weather Proof Rating: IP64 for light showers

SurveyCam® Output:

  • Video: 1280x720HD When filming for longer periods, videos are automatically saved as 10 Minute video files.
  • 15 Minutes filming would be saved as 1 x 10 minute / 1 x 5 Minute videos.
  • Images: 1MP
  • Blutooth contection

SurveyCam® Photographic Case:

  • Dimensions: 33cm L x 28cm W x 12cm H
  • Watertight seal around lid
  • Foam protected storage compartments
  • Secure double throw latches
  • Soft grip handle
  • Holes on either edge for padlocking
  • Injection Molded high quality Polypropylene

Please Note: The SurveyCam® Telescopic Inspection Pole (32ft / 50ft) is not included as standard with the standalone SurveyCam system.

32ft SurveyCam® Telescopic Inspection Pole:

  • Construction: Premium High Modulus Carbon Fibre
  • Collapsed Height: 6FT
  • Telescopic Sections: 6
  • Weight: 1.6KG
  • Supplied with a branded carry case.

50ft SurveyCam® Telescopic Inspection Pole:

  • Construction: Premium High Modulus Carbon Fibre
  • Collapsed Height: 6FT
  • Telescopic Sections: 10
  • Weight: 2.7KG
  • Supplied with a branded carry case.
