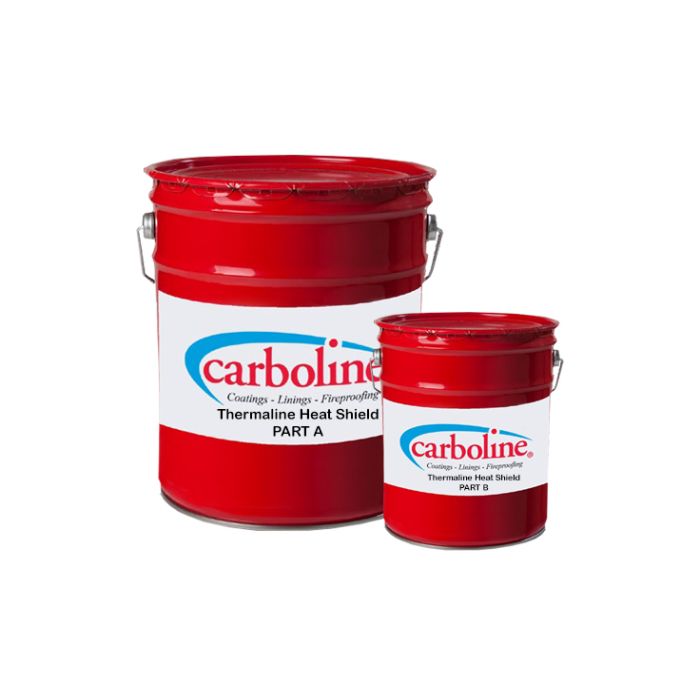

Carboline Thermaline Heat Shield
Carboline Thermaline Heat Shield is an extreme performance pipeline coating for hot, cryogenic and cycling exposures.
Carboline Thermaline Heat Shield contains a unique blend of plate-like reinforcing pigments fortified with an inert polymeric matrix. The resulting film provides an outstanding barrier against corrosives and harsh exposures typically seen in elevated temperature environments.
Best Uses
This versatile coating is ideal for all piping, vessels and equipment operating from cryogenic conditions up to 650°C. Carboline Thermaline Heat Shield is particularly well suited to prevent corrosion under insulated equipment/piping for both carbon steel substrates and stainless steels.
Provides superior shop handling properties over standard silicone coatings. Recommended for CS-6 and SS-5 systems of NACE SP0198 Standard Practice for coatings to control corrosion under insulation (CUI).
- Unique reinforced but flexible polymer film
- Versatile use from cryogenic to 650°C
- Dries to handle without heat cure
- Outstanding barrier properties
- Protects steel from thermal wet cyclic conditions
- Suitable for both shop and field application
- Provides corrosion protection even with ambient temperature cure
- Meets ISO 12944-6 C5-M Medium
- Self priming or apply over Carboline Carbozinc 11 primers when uninsulated
- Protects stainless steels from chlorides and stress corrosion cracking
- Very fast recoat times
Application
Suitable for both shop and field application. Apply via conventional or airless spray. If using brush or roller, avoid rebrushing. See data sheet for full preparation and application methods.
| Components: | Two Pack |
| Type: | Reinforced inorganic polymer (inert multi-polymeric matrix) |
| Finish: | Eggshell |
| Stock Colours: | 0700 (Metallic Aluminum Grey) and J700 (Metallic Grey) |
| Tintable: | No |
| VOC Content: | 420 g/L |
| Volume Solids: | 51% |
| Suitable Substrates: | Carbon Steel, Stainless Steel, Ferrous Metals |
| Application Method: | Conventional Spray, Airless Spray, Brush or Roller |
| Theoretical Coverage: | 4m2 per litre at 125 microns, 20.1m2 per litre at 25 microns |
| Wet Film Thickness (WFT): | - |
| Dry Film Thickness (DFT): | Two coats recommended. For best results keep DFT below 300 microns |
| Induction Time: | - |
| Pot Life: | 8 hours at 24°C. Less at higher temperatures |
| Touch Dry: | 1 hour at 16°C |
| Overcoatable: | After 3 hours at 16°C |
| Dry To Handle: | 5.5 hours at 16°C |
| Cleaner / Thinner: | To clean up use Carboline Thinner No2 or Acetone. To thin see datasheet - Carboline Thinner No10, Carboline Thinner 235 or Carboline Thinner 236E depending on application method. |
| Shelf Life: | 1 year in original unopened containers in 24°C. |
| Packaging: | Available in 10.35 Litres |
