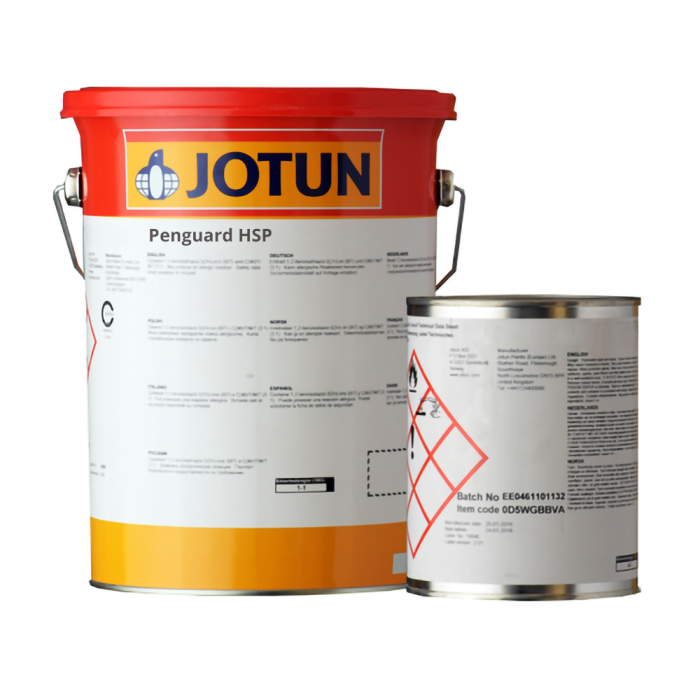

Jotun Penguard HSP is a two component epoxy which provides a protective coating to newly constructed, metal substrates, within atmospheric environments.
This product is part of the Network Rail/Railtrack RT98 Systems M20, M21, N1, N2 and N4
Jotun Penguard HSP is a two component epoxy coating which is a fast drying, high solids, high build product. It can be used as a primer or mid coat in high atmospheric environments.
Jotun Penguard HSP is a two component amine cured epoxy coating. It is a fast drying, high solids, high build product. Can be used as primer or mid coat in atmospheric environments. Specially designed for new construction where short dry to handle and over coating times are required. Suitable for properly prepared aluminium, carbon steel, galvanised steel, shop primed steel and stainless steel substrate.
Suitable for structural steel and piping to be exposed to corrosive environments. Recommended for power plants, airports, buildings, refineries and mining equipment.
Airless spray application is recommended - a brush can be used for stripe coating or small areas. All surfaces should be clean, dry and free from contamination before applying Penguard HSP.
Surfaces and Environment
Penguard HSP is a for structural steel and piping which is exposed to corrosive environments. It is suitable for prepared aluminium, carbon, galvanised and shop primed steel and stainless steel substrates.
- This product is part of the Network Rail/Railtrack RT98 Systems M20, M21, N1, N2 and N4
- Certificate numbers XM92/M20-166, XM92/M21-167, N1-115, XN90/N2-089 and XN90/N4-090
|Type:||Amine cured epoxy coating|
|Stock Colours:||Buff, Grey, Grey XO, Red|
|VOC Content:||246.0g per litre|
|Suitable Substrates:||Suitable for properly prepared aluminium, carbon steel, galvanised steel, shop primed steel and stainless steel substrate|
|Application Method:||Airless Spray, Brush|
|Theoretical Coverage:||12 - 3m2 per litre|
|Wet Film Thickness (WFT):||85 - 340 microns|
|Dry Film Thickness (DFT):||60 - 250 microns|
|Pot Life:||2 hours at 23°C|
|Touch Dry:||2 hours at 10°C|
|Overcoatable:||4 hours at 10°C|
|Fully Cured:||8 days at 10°C|
|Cleaner / Thinner:||Jotun Thinner No. 17|
|Shelf Life:||24 months|
|Packaging:||Available in 5 and 20 Litres|
The manufacturers data sheets are available for download from this website. It is your responsibility to read and understand all aspects of the data sheets before you place an order and prior to application. Please pay special attention to the preparation, mixing and application temperatures of the product, cleaning of substrate and environmental factors such as temperature, rain etc. Quoted coverage rates are based on the manufacturers theoretical rates and may vary depending upon substrates absorption, texture and application. We always recommend a test is carried out to ensure suitability.
Customer further agrees that Promain have no liability for any errors or omissions contained within the Product Data Sheets and are not liable for failure due to misapplication or inadequate substrate cleaning and preparation. For more information please refer to our Terms & Conditions.
