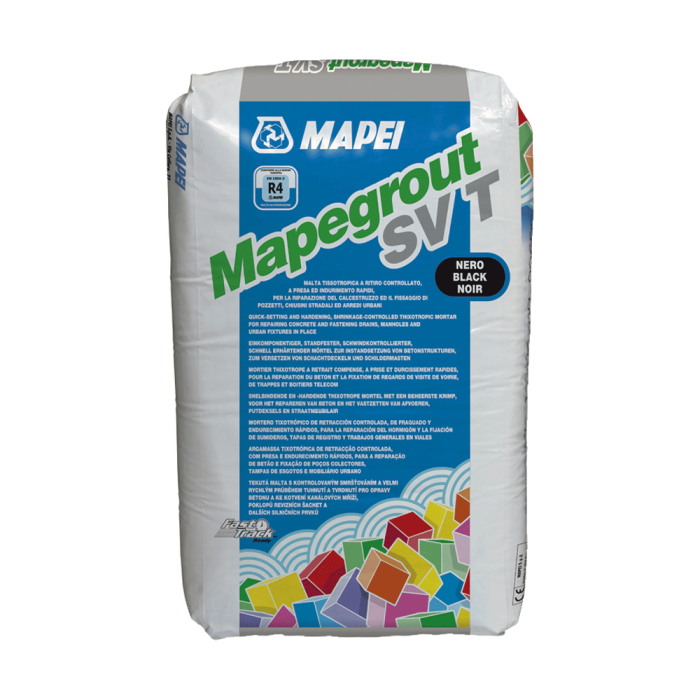

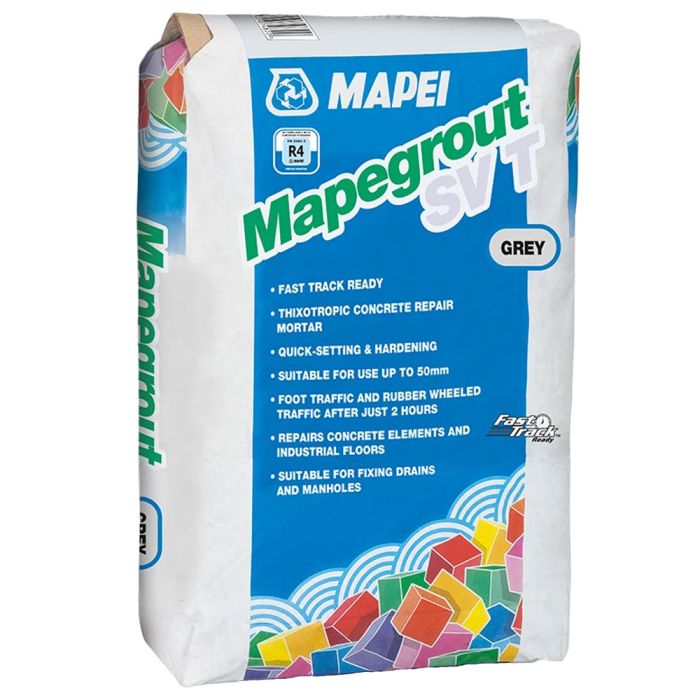

Mapei Mapegrout SV T

Mapei Mapegrout SV T is a quick-setting and hardening, shrinkage compensated, thixotropic mortar for repairing concrete and fixing drains, manholes, warehouse floors and urban fixtures etc.

Best Uses

Mapegrout SV T is a single component pre blended black or grey mortar. Produced from a high strength cement, graded aggregates and specialist admixtures to produce a fast curing thixotropic material. Mapegrout SV T can be subject to rubber wheeled traffic within 2 hours when applied at an ambient temperature of 20°C.

• Fast curing
• Thixotropic
• A high strength cement
• Contains graded aggregates

Mapei Mapegrout SV T meets the requirements defined by EN 1504-9, (Products and systems for the protection and repair of concrete structures, Definitions, requirements, quality control and evaluation of conformity, General principles for the use of products and systems) and the minimum requirements claimed by EN 1504-3 (Structural and non-structural repair) for structural mortars of class R4.

Application examples:

• Repairing concrete elements, including those on a slope
• Repairing industrial floors, and for construction work on roads and in airports which need to be quickly reopened to traffic
• Fixing inspection shafts and manholes in place
• Repairing concrete floors used in industry, shopping centres and warehouses
• Repairing concrete road surfaces in airports
• Repairing roadside pavements
• Repairing access ramps and floors
• Repairing concrete overflow channels
• Fixing road signs in place
• Fixing concrete electricity and telephone pylons
• Fixing fences in place
• Fixing urban fixtures
• Anchoring protective barriers and crash barriers
• Fixing gratings for overflow channels in central reservations and kerb stones
• Fixing drain covers and manhole covers for gas, electricity and phone companies

Application

Preparation of the substrate
Remove all concrete which has deteriorated or is at risk of detachment, until a solid, strong rough substrate is obtained. Remove all loose parts with a hydro jack-hammer. All previous repair work which is not perfectly bonded must be removed. Eliminate all old paintwork, oil, dust and any other material which may impede the bonding of Mapegrout SV T to the substrate.  Saturate the substrate with water. Before applying the product, wait until all excess water has evaporated. If necessary, use compressed air.

Preparing the mortar
Pour 12.5-13.5% of water into a cement mixer (3.1-3.4 litres per 25 kg bag). Slowly add Mapegrout SV T and mix for 1-2 minutes. Remove all the powder which has not blended with the mix from the sides of the mixer and continue mixing for 2-3 minutes, until a smooth, homogenous blend is obtained.

Laying the mortar
Apply Mapegrout SV T using a trowel in the pre-prepared area. Compact the mortar to get rid of any voids, either manually with a trowel or with a vibrator with a pronged fitting. Smooth off the surface immediately with a finishing trowel. If required, after fixing drain covers or man-hole covers in place, lay fresh asphalt around the area. We recommend applying a layer of at least 3 cm thick in order to bond well and to bear the weight of traffic without cracking.
