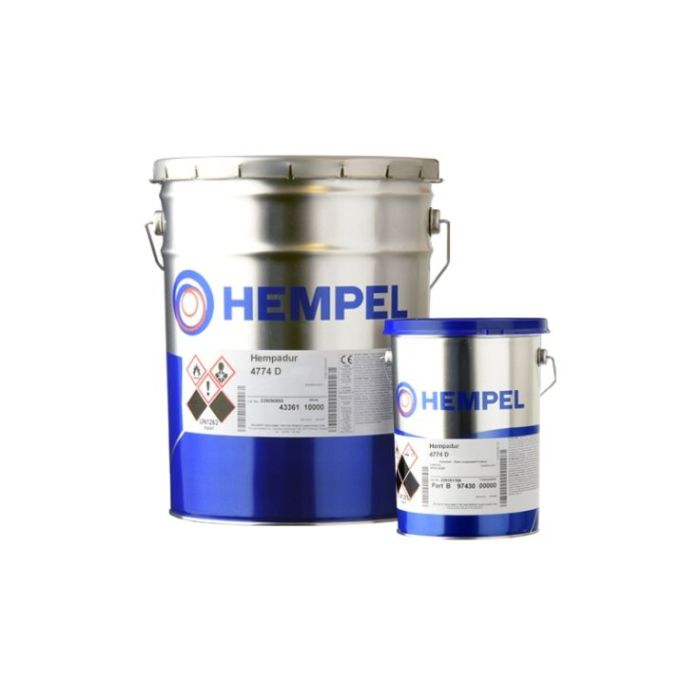

Hempel Hempadur 4774D
Please note, this product is Made To Order and has a 2 week lead time.
Hempel Hempadur 4774D is a self-priming, two-component, high-build, pure epoxy paint, polyamide / amine cured. Abrasion and corrosion resistant.
Best Uses
Hempel Hempadur 4774D is best used as a high build primer, intermediate and/or self-primed finish for high performance, heavy-duty coating systems.
Application
New steel: Abrasive blasting to min. Sa 2½ (ISO 8501-1:2007). For temporary protection, if required, use a suitable shop primer. All damage of shop primer and contamination from storage and fabrication should be thoroughly cleaned prior to final painting. Welds, rusty spots, etc. to be abrasive spot-blasted.
Stainless steel: To be abrasive blasted to a uniform, sharp, dense profile, ISO Comparator Medium (G), corresponding to Rz minimum 50 microns. Any salts, grease, oil, etc. to be removed before abrasive blasting is commenced.
Repair: Remove oil and grease etc. thoroughly with suitable detergent. Remove salts and other contaminants by high pressure fresh water cleaning. Clean damaged areas thoroughly by power tool cleaning to St 3 (ISO 8501-1:2007) (minor areas) or by abrasive blasting to min. Sa 2, preferably to Sa2½ (ISO 8501-1:2007). Improved surface preparation will improve the performance of the product.
Use only where application and curing can proceed at temperatures between: 5°C/41°F - 60°C/140°F. The temperature of the paint itself should be above: 15°C/59°F. Apply only on a dry and clean surface with a temperature above the dew point to avoid condensation. In confined spaces, provide adequate ventilation during application and drying. Maximum relative humidity: 85%.
Can be used on top of zinc silicate or on metallised area by use of the flash coat technique.
Approvals
- Norsok M-501 system no. 1 (Pre-Qualified)
- Norsok M-501 system no. 2B
Features
- Heavy duty, abrasion resistant coating.
- Overcoatable by a wide range of epoxy- and polyurethane coatings.
- Low VOC.
- Applicable by standard heavy duty airless spray equipment in a wide range of film thicknesses
Technical Info
| Components: | Two Components |
| Type: | High Build Pure Epoxy |
| Finish: | Semi-Gloss |
| Stock Colours: | RAL 9001 |
| Tintable: | Yes, other shades according to assortment list - Please note, bespoke tints are non refundable / exchangeable |
| VOC Content: | 229 g/l [1.9 lbs/US gallon] |
| Volume Solids: | 76 ± 2 |
| Suitable Substrates: | Steel |
| Application Method: | Airless spray / Brush |
| Theoretical Coverage: | 5.1 m2/l [204.5 sq.ft./US gallon] - 150 micron/6 mils |
| Wet Film Thickness (WFT): | 200 micron [8 mils] |
| Dry Film Thickness (DFT): | 150 micron [6 mils] |
| Induction Time: | - |
| Pot Life: | 45 minute(s) 20°C/68°F - Pot life depends on size of packing and temperature |
| Touch Dry: | 2 hour(s) 20°C/68°F |
| Overcoatable: | 2 hours Minimum to 30 days maximum at 20°C |
| Fully Cured: | 7 day(s) 20°C/68°F |
| Cleaner / Thinner: | Thin with Hempel 08450 (5%), Clean tools with Hempels Tool Cleaner 99610 |
| Shelf Life: | 3 years for BASE and 3 years (25°C/77°F) for CURING AGENT from time of production. |
| Packaging: | Available in 20 Litres |
