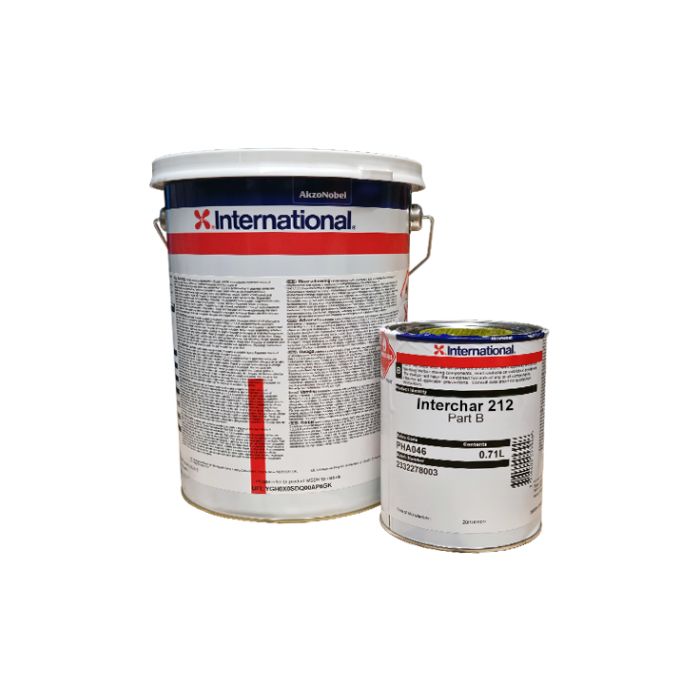

International Interchar 212

International Interchar 212 is a high performance, high build, solvent free, two pack modified epoxy intumescent fireproofing coating designed to be used on steelwork requiring protection from cellulosic fires.

Best Uses

Typically applied off site by specialist applicators, Interchar 212 will achieve the required fire protection thickness in only one or two coats. The product has excellent corrosion performance and mechanical properties. Interchar 212 can provide fully fire proofed steelwork without the need to topcoat. Interchar 212 is primarily a spray applied material, and performs without the requirement for any reinforcement.

International Interchar 212 is formulated to assist in preserving the structural integrity of steelwork in a cellulosic fire. Typical structures requiring this protection include a number of public access buildings, e.g. Airport Terminals, Leisure Facilities, Convention Centres, Educational Facilities, Shopping Malls, Industrial Complexes and Hotels.

International Interchar 212 utilises tough durable epoxy technology to provide a material that allows for steelwork to be fabricated and fire protected away from the construction site, which helps in both improving quality control and reducing construction schedules.

Independently fire tested. Recognised by FM Approvals as a Specification Tested Product in accordance with ASTM E119. Also tested in accordance with UL 263 (exterior listed), BS 476 Parts 20-22, GOST (Russia), ENV 13381 Pt 4, Australian Standard AS1530.4 (1997) and Korean Standard F 2257.

Application

All surfaces to be coated should be clean, dry and free from contamination. Prior to paint application, all surfaces should be assessed and treated in accordance with ISO 8504:2000. Steel surfaces must be abrasively blast cleaned and an approved priming system applied. Blast cleaning should be carried out in accordance with the requirements on the primer technical data sheet. The general requirement is blast cleaning, to Sa2½ (ISO 8501-1:2007) or SSPCSP6 to be carried out, with a sharp angular profile being obtained. The blast profile should be a minimum of 50 microns (2 mils) for steel substrates. Primer selection is based upon the final environment to which the fire protection system will be exposed.

Interchar 212 is also suitable for application to galvanised steel substrates. Surfaces should be prepared by sweep abrasive blasting to provide a roughened surface, to a standard similar to Sa 1 (ISO 8501-1), SSPC-SP7 or NACE No. 4. Typically, a profile of 15-25 microns (0.6-1.0 mils) is achieved by sweep blasting. An approved primer should be applied after sweep blasting.

Apply via hot twin feed airless spray (Plural component) or modified single feed machine.

IMPORTANT INTUMESCENT PRODUCT NOTE: Always contact Promain’s technical team prior to purchase to obtain a tailored project specification and the advice necessary. The information displayed on this website should only be used as a guide. Promain UK Limited will not be held liable for any resulting damage to property, human life or monetary costs incurred due to incorrect specification, preparation, application or maintenance that has occurred due to negligence by either the purchaser or applicator. This includes your failure to have contacted us to obtain the relevant advice/specification.
