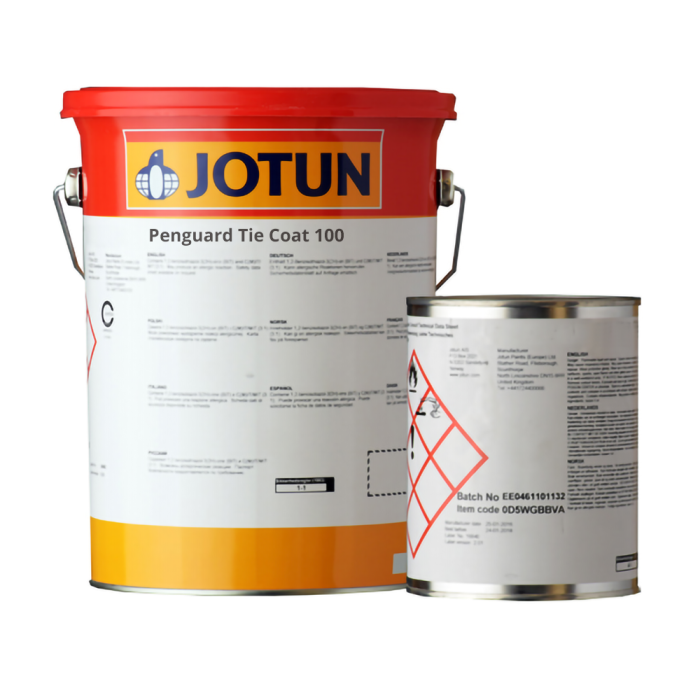

Jotun Penguard Tie Coat 100 is a two component, polyamide cured, high molecular weight epoxy coating, specially designed as a tie coat / sealer on top of inorganic zinc silicate primers, galvanised steel and thermally sprayed zinc.
Jotun Penguard Tie Coat is a two component polyamide cured epoxy coating. It is suitable for structural steel and piping exposed to highly corrosive environments. Recommended for offshore environments, refineries, power plants, bridges, buildings and mining equipment. Formulated as a primer in a complete system in atmospheric environments.
Jotun Penguard Tie Coat should be applied with an airless or conventional spray. The use of a brush is recommended for stripe coating or small areas. For Galvanised Steel prepare by light brush blasting using non metallic abrasive leaving a clean, rough and even pattern. For coated surfaces clean, dry and undamaged compatible coating.
- Low Flame Spread in accordance with EU Directive for Marine Equipment. Approved in accordance with parts 5 and 2 of Annex 1 of IMO 2010 FTP Code, or Parts 5 and 2 of Annex 1 of IMO FTPC when in compliance with IMO 2010 FTP Code Ch. 8
- Pre-qualification testing in accordance with NORSOK M-501, Rev. 5, System 1, suitable for exterior exposure in offshore environment, below 120 °C
|Type:||Polyamide cured epoxy coating|
|VOC Content:||519.0g per litre|
|Suitable Substrates:||Tie coat / sealer on top of inorganic zinc silicate primers, galvanised steel and thermally sprayed zinc|
|Application Method:||Air Spray, Airless Spray, Brush|
|Theoretical Coverage:||17 - 8.4m2 per litre|
|Wet Film Thickness (WFT):||60 - 120 microns|
|Dry Film Thickness (DFT):||25 - 50 microns|
|Induction Time:||30 mins at 23°C|
|Pot Life:||4 hours at 23°C|
|Touch Dry:||2 hours at 10°C|
|Overcoatable:||18 hours at 10°C|
|Fully Cured:||14 days at 10°C|
|Cleaner / Thinner:||Jotun Thinner No. 17|
|Shelf Life:||24 months for Part A, 48 months for Part B|
|Packaging:||Available in 20 Litres|
The manufacturers data sheets are available for download from this website. It is your responsibility to read and understand all aspects of the data sheets before you place an order and prior to application. Please pay special attention to the preparation, mixing and application temperatures of the product, cleaning of substrate and environmental factors such as temperature, rain etc. Quoted coverage rates are based on the manufacturers theoretical rates and may vary depending upon substrates absorption, texture and application. We always recommend a test is carried out to ensure suitability.
Customer further agrees that Promain have no liability for any errors or omissions contained within the Product Data Sheets and are not liable for failure due to misapplication or inadequate substrate cleaning and preparation. For more information please refer to our Terms & Conditions.
