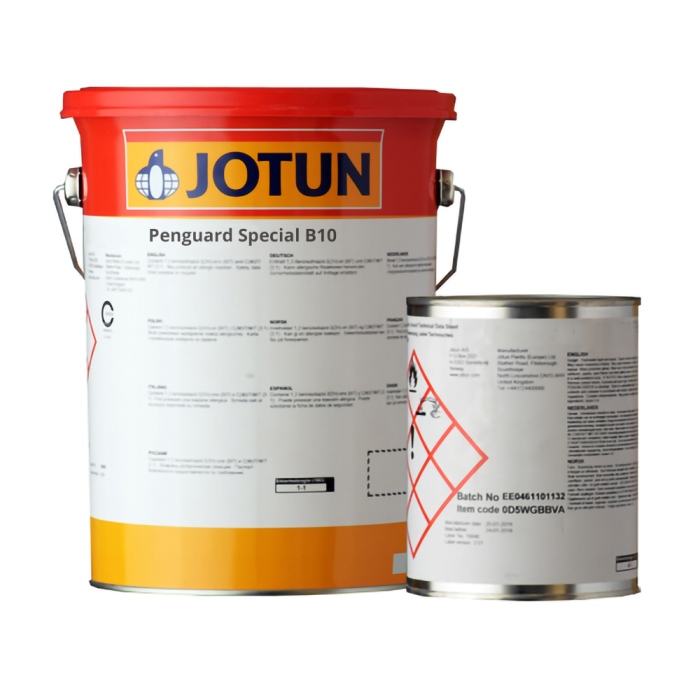

Jotun Penguard Special B10

SKU
id17039
Part A and B: UN1263 (Class: 3, Pk Grp: III)
A two component polyamide highly pigmented zinc phosphate coating. Highways Approved Item No. 110.
Available in 20 Litres in Red
£227.10 £189.25
In stock
main product photo
Product Description

Jotun Penguard Special B10 is a two pack highly pigmented zinc phosphate coating certified under Highways Approved Item No. 110.

BBA Approval Logo

Penguard Special B10 is a two component highly pigmented zinc phosphate polyamide cured high molecular weight epoxy primer.

Best Uses

Jotun Penguard is suitable for application to sand blasted or correctly prepared carbon steel as well as aluminium, galvanised steel and stainless steel. Penguard can also be applied to thermally sprayed zinc/aluminium substrates.

Approved to meet the requirements of UK Highway Agency Item 110 for use on bridges lighting columns, railings, and other street furniture and highway infrastructure. Suitable for structural steel and piping to be exposed to corrosive environments. Recommended for offshore environments, refineries, power plants, bridges, buildings and mining equipment.

Application

Suitable for application via airless spray or brush for stripe coating or small areas. Care must be taken to achieve the specified dry film thickness. Use Jotun Thinner No17 as per data sheet.

Typical paint system

Jotun Penguard Special B10, Penguard Pro GF, Hardtop XP.

Technical Details

Approvals

  • Highway Agency Item 110
  • BBA HAPAS Certified for corrosion protection of structural steelwork in highway applications

Technical Info

Components: Two Part
Type: Polyamide cured, high molecular weight epoxy coating
Finish: Matt
Stock Colours: Red
Tintable: No
VOC Content: 457.0g per litre
Volume Solids: 51%
Suitable Substrates: Properly prepared carbon steel, stainless steel, aluminium, galvanised steel and thermally sprayed zinc substrates
Application Method: Airless Spray or Brush
Theoretical Coverage: 20 - 6m2 per litre
Wet Film Thickness (WFT): 50 - 160 microns
Dry Film Thickness (DFT): 25 - 80 microns
Induction Time: 30 mins at 23°C
Pot Life: 8 hours at 23°C
Touch Dry: 5 hours at 10°C
Overcoatable: 16 hours at 10°C
Fully Cured: 14 days at 10°C
Cleaner / Thinner: Jotun Thinner No. 17
Shelf Life: 12 months
Packaging: Available in 20 Litres
Product Data Sheet (97.67 kB)
Safety Data Sheet - Part A (237.27 kB)
Safety Data Sheet - Part B (235.97 kB)
System Info - Application Guide (122.20 kB)
System Info - Certificate - BBA (1.41 MB)
System Info - Jotun Network Rail and Highways Brochure (3.42 MB)
System Info - Network Rail N2 / 042 Certificate (124.79 kB)
System Info - Project Job Sheet (89.24 kB)

The manufacturers data sheets are available for download from this website. It is your responsibility to read and understand all aspects of the data sheets before you place an order and prior to application. Please pay special attention to the preparation, mixing and application temperatures of the product, cleaning of substrate and environmental factors such as temperature, rain etc. Quoted coverage rates are based on the manufacturers theoretical rates and may vary depending upon substrates absorption, texture and application. We always recommend a test is carried out to ensure suitability.

Customer further agrees that Promain have no liability for any errors or omissions contained within the Product Data Sheets and are not liable for failure due to misapplication or inadequate substrate cleaning and preparation. For more information please refer to our Terms & Conditions.
