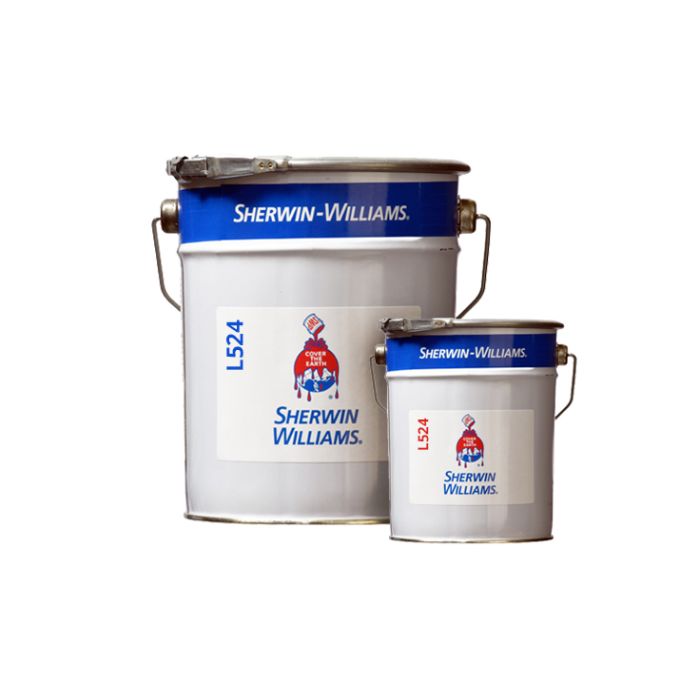

Macropoxy L524 is ideal for the protection of ships bottoms and cargo tanks, and submerged and splash zone areas of marine structures, jetties etc. This coating is also ideal for the external protection of buried and other pipelines and is particularly useful where coal tar pitch containing materials are prohibited.
Blast clean to Sa2½ BS EN ISO8501-1:2007. Average surface profile in the range 50-75 microns. Ensure surfaces to be coated are clean, dry and free from all surface contamination. Suitable primers are Macropoxy L425 Zinc Phosphate Primer and Macropoxy C400V3 Zinc Phosphate Primer (non immersed areas only). Recommended application method via airless spray or brush.
Recommended thinner no 5 for thinning and no 9 or no 13 for cleaning. Indefinitely overcoatable with epoxy systems provided the surfaces to be coated have been suitably cleaned. Where a high degree of gloss and colour retention is required, overcoat with Acrolon C137V2, Acrolon C237, Acrolon 1850 and Acrolon 7300 within 7 days at a minimum dft of 50 microns or in the case of C750V2 overcoat within 4 days. These overcoating times refer to achievement of optimum adhesion at 23°C and will vary with temperature.
|Type:||Modified epoxy coating|
|Stock Colours:||Limited range. Please contact us for details|
|VOC Content:||296 gms/litre|
|Volume Solids:||64 ± 3%|
|Suitable Substrates:||For the protection of ships bottoms and cargo tanks,|
|Application Method:||Brush, Airless Spray|
|Wet Film Thickness (WFT):||195 microns|
|Dry Film Thickness (DFT):||125 microns|
|Pot Life:||6 hours at 23°C|
|Touch Dry:||6 hours at 23°C|
|Overcoatable:||12 hours at 23°C|
|To Handle:||12 hours at 23°C|
|Cleaner / Thinner:||No 5 (for thinning)
No 9 or No 13 (for cleaning)
|Shelf Life:||2 years from date of production unopened or 'use by' date where specified|
|Packaging:||Available in 4 Litres and 20 Litres|
The manufacturers data sheets are available for download from this website. It is your responsibility to read and understand all aspects of the data sheets before you place an order and prior to application. Please pay special attention to the preparation, mixing and application temperatures of the product, cleaning of substrate and environmental factors such as temperature, rain etc. Quoted coverage rates are based on the manufacturers theoretical rates and may vary depending upon substrates absorption, texture and application. We always recommend a test is carried out to ensure suitability.
Customer further agrees that Promain have no liability for any errors or omissions contained within the Product Data Sheets and are not liable for failure due to misapplication or inadequate substrate cleaning and preparation. For more information please refer to our Terms & Conditions.
