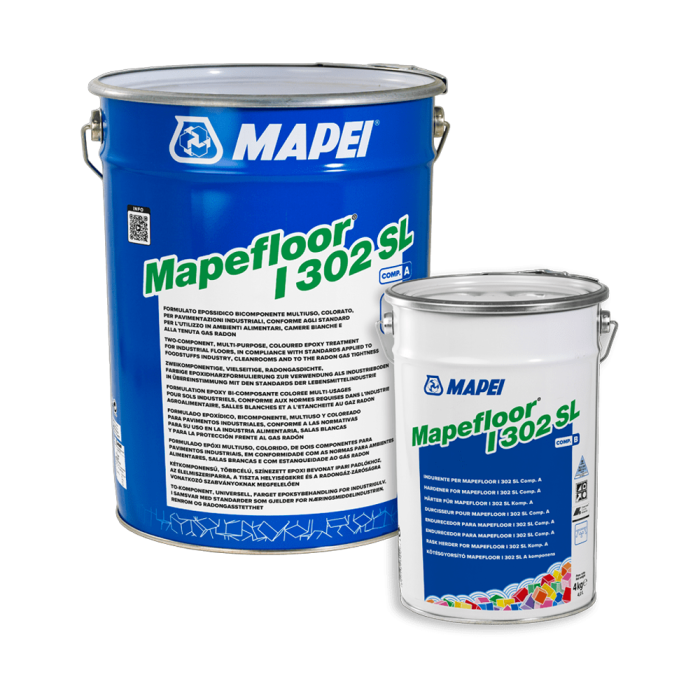

Mapei Mapefloor I 302 SL

SKU
ID10283
Part A: UN3082 (Class: 9, Pk Grp: III), Part B: UN2735 (Class: 8, Pk Grp: III)
A 2 pack epoxy coating for self-levelling and or multi-layer resin flooring with or without a non-slip finish.
Available in 20 Kg
From £273.00 £227.50
In stock
Only %1 left
Product Description

Mapei Mapefloor I 302 SL is a two-component epoxy coating suitable for self-levelling and or multi-layer resin flooring with or without a non-slip finish.

Best Uses

Providing a smooth surface appearance, Mapefloor I 302 SL is solvent and nonylphenol-free and is particularly suitable for flooring in the food industry. Abrasion and chemical resistant, it can be used as a paint or a high build coating, with quartz added to provide a low slip surface. It may also be coloured with 19 standard colours of Mapei Mapecolor Paste. Mapefloor I 302 SL is a FeRFA type 3 floor coating ideal for use in chemical and pharmaceutical industries, the food industry, automated laboratories and warehouses, aseptic areas and shopping centres.

All Mapei Mapefloor Systems offer distinct benefits; good abrasion resistance, a very strong bond to most substrates and are easy to maintain.

In addition to these functional qualities, they can also provide highly decorative surfaces making them the ideal flooring solution for a wide range of installations. The durable, dust-free resin surface offers versatility whilst providing an attractive finish.

Application

Preparation of the substrate
The surface of concrete must be dry, clean, and sound and have no crumbling or detached areas. The compressive strength of the concrete used for the substrate must be at least 25 N/mm² and its tensile strength must be at least 1.5 N/mm². The strength of the substrate must also be suitable for its final use and for the types of loads acting on the flooring. The level of moisture in the substrate must be a maximum of 4% and there must be no capillary rising damp (check by testing it with a sheet of polythene). The surface of the floor must be prepared with suitable power tools (e.g. shot-blasting or grinding with a diamond disk) to remove all traces of dirt, cement laitance, and crumbling or detached portions and to make the surface slightly rough and absorbent. Before applying the product, remove all dust from the surface with a vacuum cleaner. Any defects present in the surface, such as holes, pitting, cracking, etc., must be repaired with Mapei Primer SN fillerized with quartz sand or made thixotropic with Additix PE, or with Mapefloor JA or Mapefloor JA Fast depending on the width and depth of the defects or cracks. Patch any badly damaged areas or joints, fill hollows in the surface, and repair or carry out localised variations to slopes with Mapefloor EP19, ready-mixed epoxy mortar.

Before applying Mapefloor I 302 SL, remove all traces of dust from the surface with a vacuum cleaner. The substrates must be primed and prepared as specified.

Application of Primer SN
Apply the Primer SN undiluted or mixed with Mapei Quartz 0.5 on the substrate with a straight trowel or rake after it has been prepared as specified. Immediately after applying Mapei Primer SN broadcast the surface while still wet with Mapei Quartz 0.5, depending on the type of resin system to be applied.

Preparation of the product
The two components which make up Mapefloor I 302 SL must be mixed together just before application. Stir component A thoroughly, pour all the contents of component B, and add the quartz sand when needed. Mix for at least 2 minutes with a suitable low-speed electric mixer (300-400 revs/min), to prevent entraining air into
the mix, until it is completely blended. Pour the mix into a clean container and briefly mix again. Do not mix the product for too long to avoid entraining too much air into the mix. Apply the mix within the pot life indicated in the data table (it refers to a temperature of +23°C). Higher surrounding temperatures will reduce the pot life of the mix, while lower temperatures will increase its pot life.

Application of the product
Mapefloor I 302 SL can be used for non-slip multi-layer (0.8 to 3.5 mm thick) or self-levelling (2 to 4 mm thick) resin systems.

  1. Multi-layered non-slip system - thickness 0.8 to 1.2 mm (Mapefloor System 31)
    Prepare the substrate by shot-blasting or diamond grinding, then carefully remove all dust by vacuum. Apply by straight trowel a scratch coat of Primer SN (A+B) mixed with Mapecolor Paste and approximately 20% by weight of Quartz 0.5; immediately after the application of the primer, while it is still wet, broadcast in excess with Quartz 0.5. When the primer has hardened, remove any excess sand, sand the surface, and remove the last grains of quartz with an industrial-grade vacuum cleaner. Apply the finishing coat of Mapefloor I 302 SL previously prepared, adding to the mix 5-6% by weight of Quarzo 0,25 by medium-pile roller or scratching to zero with a straight steel trowel. Then back roll with a short-pile roller in a criss-cross pattern.
  2. Multi-layered non-slip coating - thickness 3.0 to 3.5 mm (Mapefloor System 32)
    Prepare the substrate by shot-blasting or diamond grinding, then carefully remove all dust by vacuum. Apply by straight trowel a scratch coat of Primer SN (A+B) mixed approximately 20% by weight of Quartz 0.5; immediately after the application of the primer, while it is still wet, broadcast in excess with Quartz 0.5. When the primer has hardened, remove any excess sand, sand the surface, and remove the last grains of quartz with an industrial-grade vacuum cleaner. Add to the previously prepared mix of Mapefloor I 302 SL approximately 40% by weight of Quartz 0.5 and mix until completely blended. Pour the product onto the floor and spread it out evenly, scratching to zero with a straight steel trowel. Immediately after applying the resin and while it is still wet, broadcast in excess the surface with Quartz 0.5. For particular requirements, such as if a higher degree of non-slip finish is required, broadcast with a larger particle size can be used. In such cases, the consumption rate of the following finishing coat will be higher. When the first layer of Mapefloor I 302 SL has hardened, remove any excess sand, sand the surface, and remove the last grains of quartz with an industrial-grade vacuum cleaner. Apply the finishing coat of Mapefloor I 302 SL previously prepared, adding to the mix 5-6% by weight of Quartz 0,25 by medium-pile roller or scratching to zero with a straight steel trowel. Then backroll with a short-pile roller in a criss-cross pattern.
  3. Smooth self-levelling coating - thickness 2-4 mm (Mapefloor System 33)
    Prepare the substrate by shot-blasting or diamond grinding, then carefully remove all dust by vacuum. Apply by straight trowel a scratch coat of Primer SN (A+B) mixed approximately 20% by weight of Quartz 0.5; immediately after the application of the primer, while it is still wet, lightly broadcast with Quartz 0.5 at a rate of up to 0.5 kg/m². Make sure there are no open pores on the surface of the substrate, otherwise air bubbles could escape and form small craters or pinholes in the self-levelling finishing coat. If there are any open pores in the substrate, apply a second skim coat of Primer SN as previously described and lightly broadcast the surface with Quartz 0.5.

When the primer has hardened, remove any excess sand and carefully vacuum the surface. Mix the previously prepared Mapefloor I 302 SL with up to 50% by weight of Quartz 0.25 depending on the temperature and the thickness to be applied. The quantity of quartz sand to be added can be increased when the temperature and thickness increase. Mix to form a homogeneous mixture, then pour the product onto the floor and spread it out evenly with a notched spreader with “V” shaped notches. Back-roll the surface with a spiked roller several times while the product is still wet to remove any air entrapped in the product during the mixing phase.

Technical Details

Approvals and Certifications

  • FeRFA type 3 floor coating
  • Taber Test after 7 days (EN ISO 5470-1 1000 cycles/1000g, CS17 disk) (mg): 70

Technical Info

  • Available in Mapefloor I 302 SL (neutral) 20kg kits of component A 16kg, component B 4kg.
  • Mapefloor I 302 SL (pre-coloured) 21.75kg kits.
Components: Two Component
Type:  Solvent and nonylphenol-free
Finish: Smooth Surface
Stock Colours: Range of 12 colours. Please contact us for availability
Tintable: No
VOC Content: From class 0 (high concentration of VOC, equal to 1 g/m³) to -12 (VOC emissions equal to 10-12 g/m³ or 0.001 ng/m³)
Volume Solids: -
Suitable Substrates: Flooring
Application Method: Trowel
Theoretical Coverage: See product data sheet
Wet Film Thickness (WFT): -
Dry Film Thickness (DFT): -
Workability Time: 25 minutes at 23°C
Drying Time: 7 hours at 23°C
Set to Foot Traffic: 24 hours at 23°C
Wait Time Between Coats: Min 18 to Max 48 hours at 23°C
Fully Cured: 7 days at 23°C
Cleaner / Thinner: Clean tools with ethanol immediately after use
Shelf Life: 24 months from date of production unopened
Packaging: Available in 20 Kg tubs
