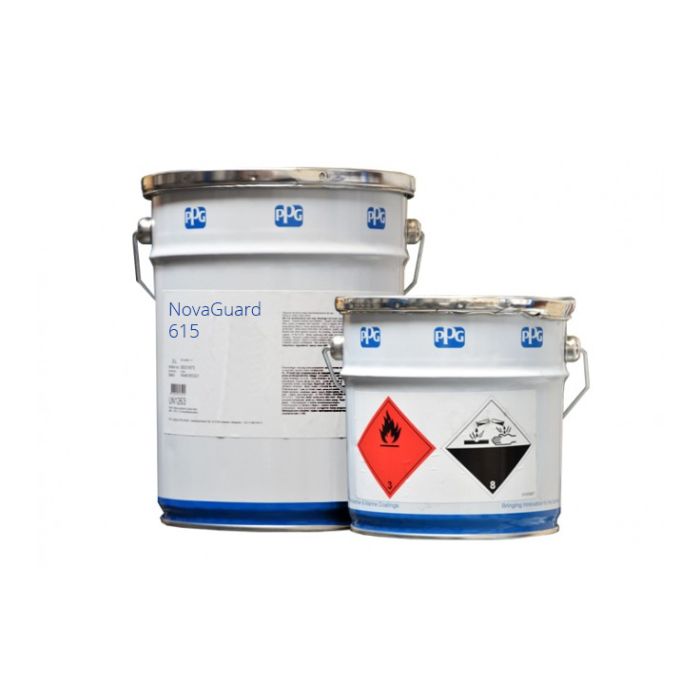

PPG NovaGuard 615
SKU
ID16846
Part A: UN3082 (Class: 9, Pk Grp: III), Part B: UN3066 (Class: 8, Pk Grp: II)
A two-component, solvent-free, amine-cured modified phenolic epoxy tank coating suitable for aviation fuel.
Available in 20 Litres in Light Grey 5001
From
£348.84
£290.70
In stock
Only %1 left
Product Description
PPG NovaGuard 615 is a two-component, solvent-free, amine-cured modified phenolic epoxy tank coating suitable for aviation fuel, storage of crude oil and petroleum with a high chemical resistance.
Best Uses
PPG NovaGuard 615 is best suited as an internal tank coating for storage of aviation fuel.
- Tank coating for crude oil and aliphatic petroleum products
- Good resistance to various chemicals
- Can be applied by heavy-duty, single-feed, airless spray equipment (60:1)
- Excellent anti-corrosive properties and water resistance
- Good abrasion resistance
- Meets the requirements of EI 1541 2.2 (coating systems for aviation fuel storage tanks and pipes)
Application
Blast clean steel to ISO-Sa 2 1/2 with a blasting profile of 50-100 microns. Substrate temperature during application and curing should be above 5°C. The temperature of the mixed base and hardener should preferably be above 20°C. For ease to do this, place both tins in a larger vessel applying warm water within the bath. Apply using airless spray using a heavy duty, single feed airless spray equipment preferably 60:1 pump ratio. No thinner should be added. Use brush or roller for stripe coating or spot repair only.
Clean up with PPG Thinner 90-53 or Thinner 90-83.
Technical Details
| Components: | Two Part |
| Type: | Solvent Free Amine Cured Modified Phenolic Epoxy |
| Finish: | Gloss |
| Stock Colours: | Light Grey |
| Tintable: | Check with manufacturer. Please note, bespoke tints are non refundable / exchangeable |
| VOC Content: | 20.0g per Litre |
| Volume Solids: | 100% |
| Suitable Substrates: | For tank coating |
| Application Method: | Brush, Roller or Airless Spray |
| Theoretical Coverage: | 10.5 m2 per litre at 50 microns |
| Wet Film Thickness (WFT): | |
| Dry Film Thickness (DFT): | 300 - 600 microns |
| Induction Time: | - |
| Pot Life: | 45 minutes at 20°C |
| Touch Dry: | 8 hours at 20°C |
| Overcoatable: | Between 36 hours and 6 months when not exposed to direct sunshine at 20°C |
| Fully Cured: | 5 days at 20°C |
| Cleaner / Thinner: | Do not thin. Clean up with PPG Thinner 90-53 or Thinner 90-83. |
| Shelf Life: | 24 months for base and hardener when stored cool and dry |
| Packaging: | Available in 20 Litres |
