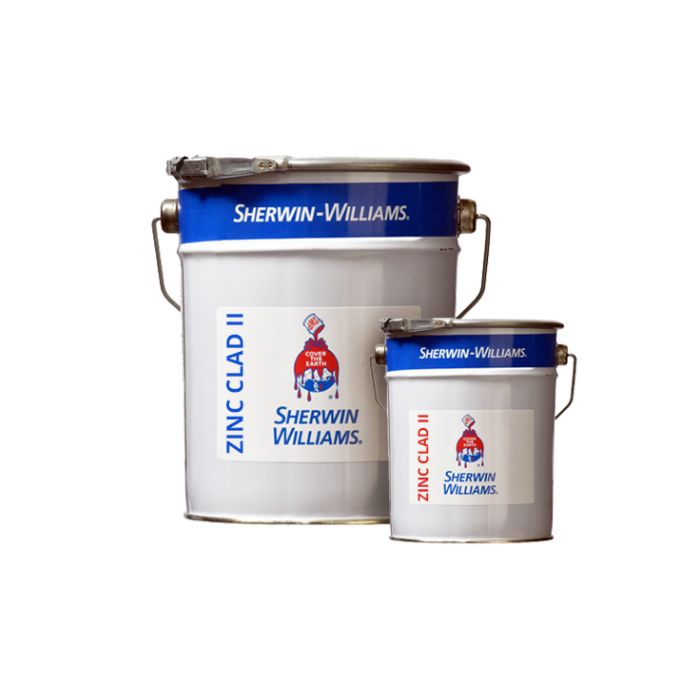

Sherwin Williams Zinc Clad II EU Ethyl Zinc Silicate Primer

SKU
id12821
Powder: UN3077 (Class: 9, Pk Grp: III), Additive: UN1263 (Class: 3, Pk Grp: II)
A self curing solvent based zinc silicate coating for the protection of blast cleaned steel surfaces up to 400°C.
Available in 5 Litres
£195.56 £162.97
In stock
main product photo
Product Description

Sherwin Williams Zinc Clad II EU Ethyl Zinc Silicate Primer is a self curing solvent based zinc silicate coating for the protection of blast cleaned steel surfaces up to 400°C.

Best Uses

Sherwin Williams Zinc Clad II is best suited for the protection of blast cleaned steel surfaces. This product is capable of withstanding temperatures up to 400°C. May be used as a holding primer at dry film thickness's down to 20 microns (thinned 15% with Sherwin Williams Thinner C4 after thorough mixing of the two components). Capable of curing at temperatures down to 0°C.

Application

Apply using airless spray or conventional spray. Use a brush for small areas or touch up only. Prior to overcoating, any water soluble salts caused by weathering must be removed by either fresh water washing or flash blasting. The use of a thin sealer coat or tie coat is essential before overcoating the material with a high build system, in order to reduce bubbling / pin holing effects.

The material is overcoatable by a wide range of non-saponifiable systems such as 2-pack epoxy, vinyl, chlorinated rubber, polyurethane etc. Consult our technical team for detailed specifications. The recoating times given above are a guide only, in all cases the Zinc Clad II EU should be fully cured before overcoating.

Technical Details

Approvals:

  • Complies with BS5493:1977 - Table 4E - Type EP2A
  • Complies with SSPC20:2004 – Level 1 Zinc content
  • Shell Specification VI(g) - Dep 40.48.00.30 - GEN
  • Complies with British Gas Specification PS PA9
  • NORSOK M-501 System 1 (Pre Qualified)

Technical Info:

Components: Two Pack
Type: Solvent Based
Finish: -
Stock Colours: Grey
Tintable: No
VOC Content: 470 gms/litre
Volume Solids: 65 ± 3%
Suitable Substrates: Steel
Application Method: Brush, Airless Spray or Conventional Spray
Theoretical Coverage: 8.7 m2/ltr*
Wet Film Thickness (WFT): 115 microns
Dry Film Thickness (DFT): 75 microns
Induction Time: -
Pot Life: 8 hours 23°C
Touch Dry: 5 minutes at 23°C
Overcoatable: 16 hours at 23°C
To Handle: 15 minutes at 23°C
Cleaner / Thinner: Cleanser/Thinner No.4
Shelf Life: Use before expiry date on additive bottle - 9 months.
Packaging: Available in 5 Litres
Product Data Sheet (190.77 kB)
Safety Data Sheet - Part A (213.86 kB)
Safety Data Sheet - Part B (176.11 kB)
System Info - Project Job Sheet (89.24 kB)

The manufacturers data sheets are available for download from this website. It is your responsibility to read and understand all aspects of the data sheets before you place an order and prior to application. Please pay special attention to the preparation, mixing and application temperatures of the product, cleaning of substrate and environmental factors such as temperature, rain etc. Quoted coverage rates are based on the manufacturers theoretical rates and may vary depending upon substrates absorption, texture and application. We always recommend a test is carried out to ensure suitability.

Customer further agrees that Promain have no liability for any errors or omissions contained within the Product Data Sheets and are not liable for failure due to misapplication or inadequate substrate cleaning and preparation. For more information please refer to our Terms & Conditions.
