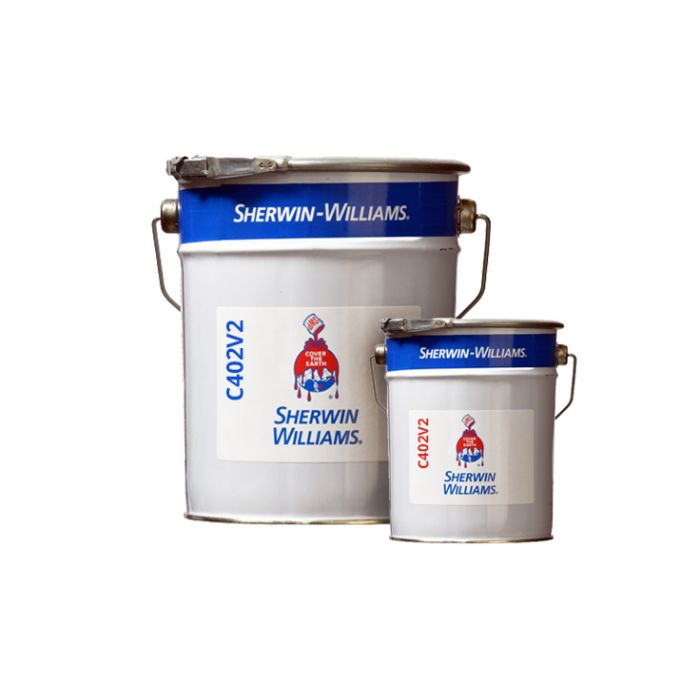

Sherwin Williams Macropoxy C402V2 Primer - Formerly Leighs Epigrip

SKU
id9204
Part A: UN1263 (Class: 3, Pk Grp: III), Part B: UN3469 (Class: 3.8, Pk Grp: III)
A high build, 2 pack epoxy, zinc phosphate primer / build coat for the anti corrosive protection of carbon steel surfaces. LUL, M24, N20, M20, approved.
Available in 20 Litres
From £398.22 £331.85
In stock
Only %1 left
Product Description

Sherwin Williams Macropoxy C402V2 - Formerly Leighs Epigrip C402V2, a high build, 2 pack epoxy, zinc phosphate primer / buildcoat for the anti corrosive protection. LUL, M24, N20, M20, approved.

Best Uses

Macropoxy C402V2 is best suited for anti-corrosive protection of carbon steel surfaces prepared by abrasive blast cleaning. May be brush applied onto hand or mechanically prepared surfaces and/or damp gingered surfaces, giving excellent wetting and adhesion characteristics.

Application

Recommended application methods are airless spray, conventional spray, brush and roller. Blast clean to Sa2½ (ISO 8501-1:2007). Average surface profile in the range 50-75 microns. Manually prepared surfaces should be prepared to a minimum standard of St3 ISO 8501-1:2007 at the time of coating. Application to such surfaces should be by brush or roller where the mechanical action will aid adhesion. Ensure surfaces to be coated are clean, dry and free from all surface contamination.

Where a high degree of gloss and colour retention is required, overcoat with Acrolon C137V2, Acrolon C237, Acrolon 1850 and Acrolon 7300 within 7 days at a minimum DFT of 50 microns or in the case of Acrolon C750V2 overcoat within 4 days. These overcoating times refer to achievement of optimum adhesion at 23°C and will vary with temperature.

Technical Details

Approvals

  • Network Rail Item No. 7.1.5 (Aluminium only)
  • Network Rail Item No. 7.1.7, 7.2.2 (other shades)
  • LuL APR No. 288: XM92/M24 Surface Tolerant Paint System for Maintenance Steel for application to LU infrastructure to provide corrosion protection for a 25 Year service life.
  • LuL APR No. 285: XN90 Paint System for New Steel for application to new construction work within LU infrastructure to provide corrosion protection for a 25 Year service life.
  • LuL APR No. 284 - N4/M20 Paint System for New and Maintenance Steel for application to bridges and structures to provide corrosion protection for a 25 Year service life. Refer to APR Entry No. 289 for an equivalent winter grade paint system.

Technical

Components: Two Pack
Type: Epoxy zinc phosphate
Finish: -
Stock Colours: Light Grey
Tintable: No
VOC Content: 217 gms/litre
Volume Solids: 75 ± 3%
Suitable Substrates: Carbon Steel
Application Method: Brush, Roller, Airless Spray or Conventional Spray
Theoretical Coverage: 7.5m2/ltr
Wet Film Thickness (WFT): 133 microns
Dry Film Thickness (DFT): 100 microns
Induction Time: -
Pot Life: 1 hour at 23°C
Touch Dry: 1½ hours at 23°C
Overcoatable: 4 hours at 23°C
To Handle: 8 hours at 23°C
Cleaner / Thinner:

No 5 (for thinning)

No 9 or No 13 (for cleaning)

Shelf Life: 2 years from date of production unopened or 'use by' date where specified
Packaging: Available in 5 Litres and 20 Litres
